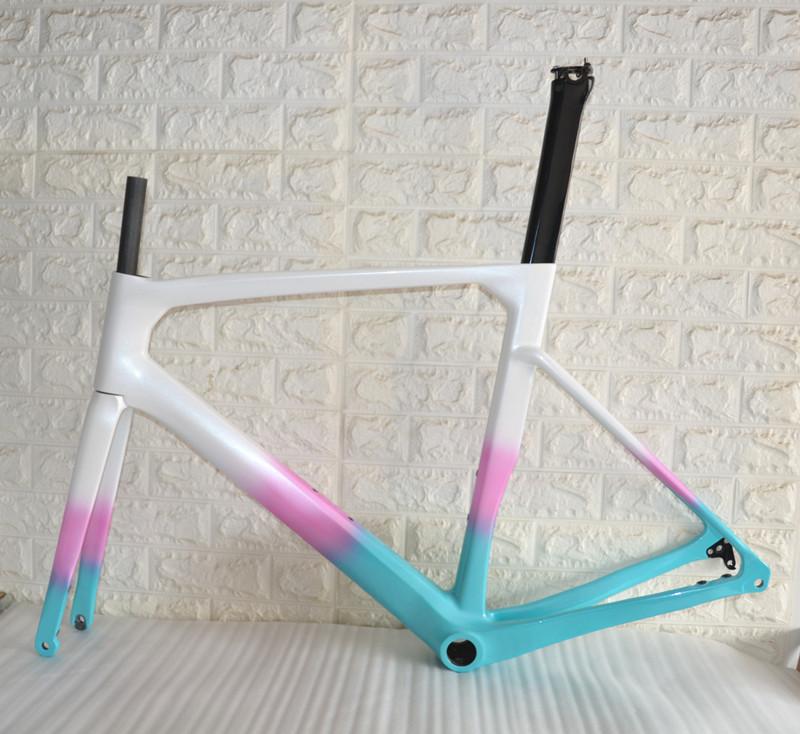

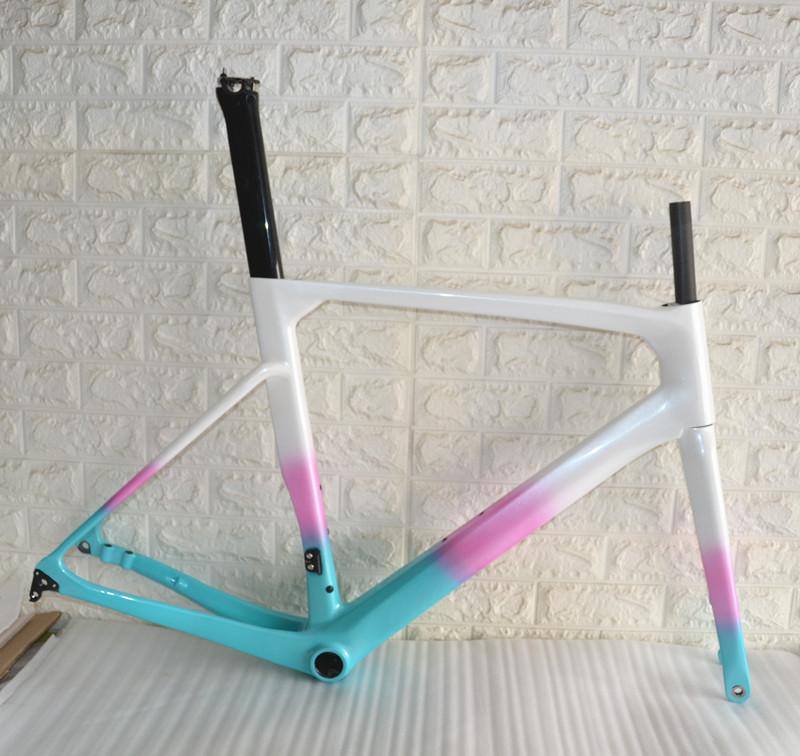

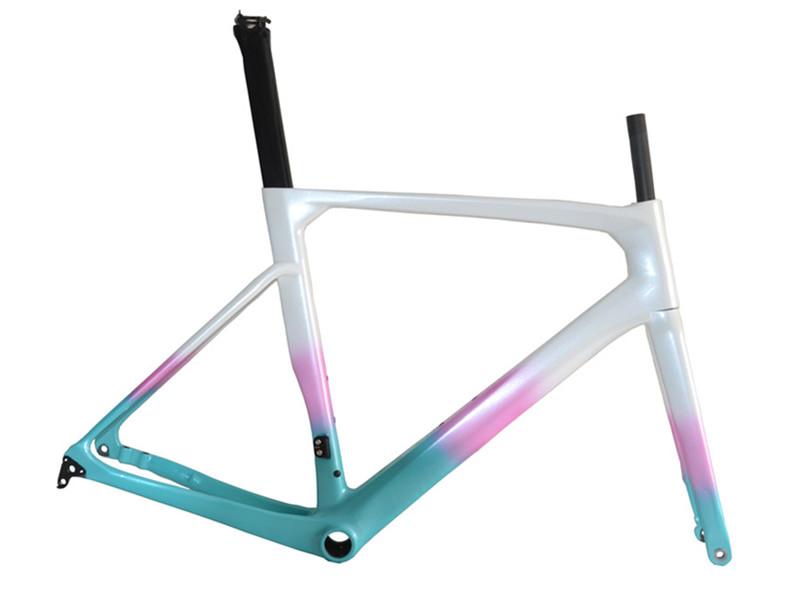

New super light weight only 850g hidden cable carbon road frame

New super light weight only 850g hidden cable carbon road frame

Hidden Cable Routing Carbon Disc Road Frame is constructed from Toray T700&T800.It uses BB86 bottom bracket with super light weight only 850g for frame

  • Item NO.:

    FM-R890HE
  • Payment:

    T/T, Paypal
  • Product Detail

Model:

FM-R890
Name: Toray carbon china bicycle frames

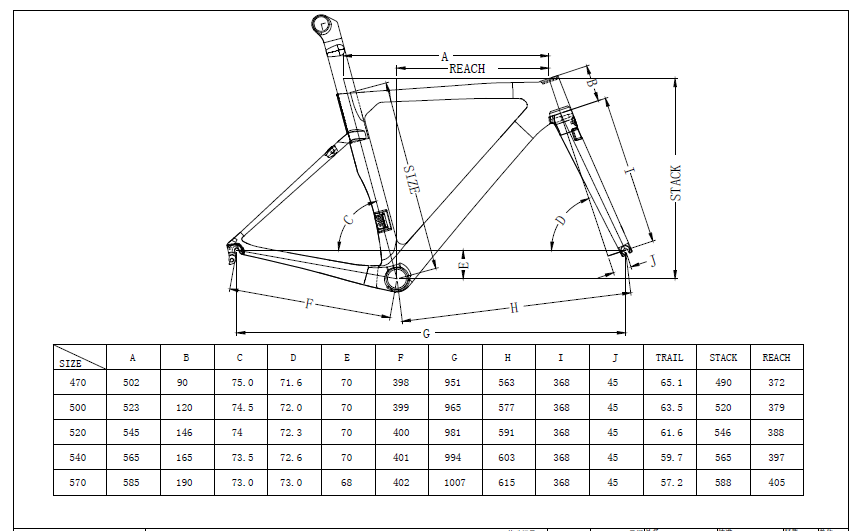

Size: 470,500,520,540,570mm
BB: Press fit BB86
Material: T800 toray carbon fiber
Headset: Regular
Finish: UD matt or glossy
Frame Weight:        Frame:850g+/-20g Super light weight
Fork Weight: 280g±10g
Cable routing: Full hidden cable
Including: Frameset include fork,seatpost
