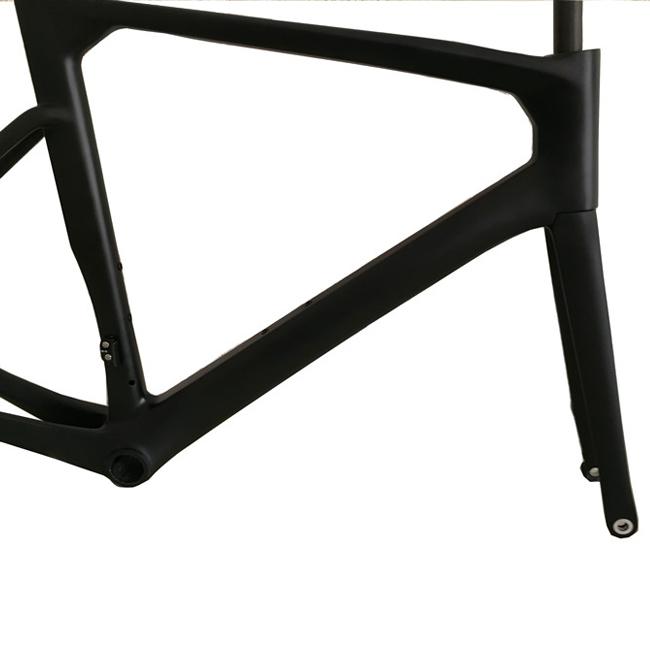

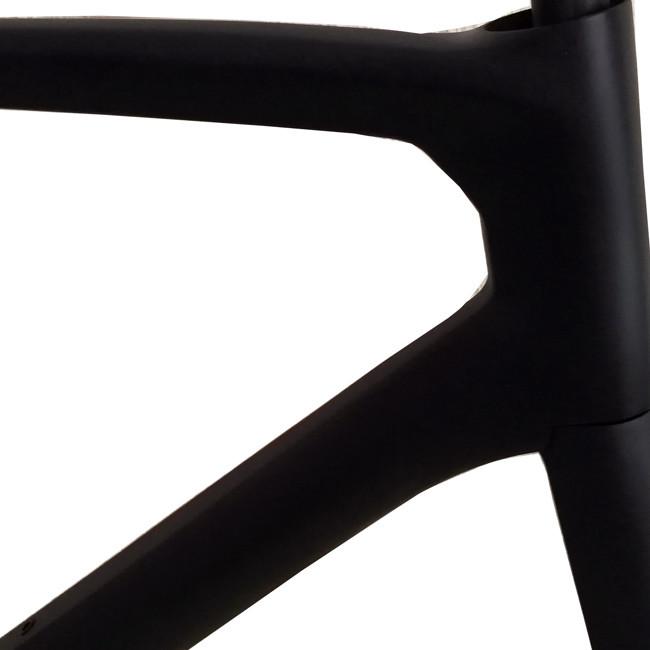

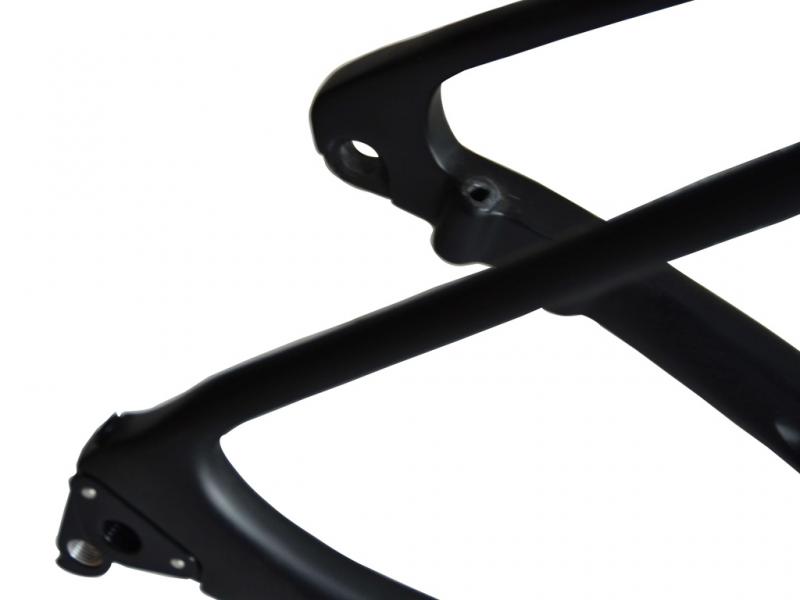

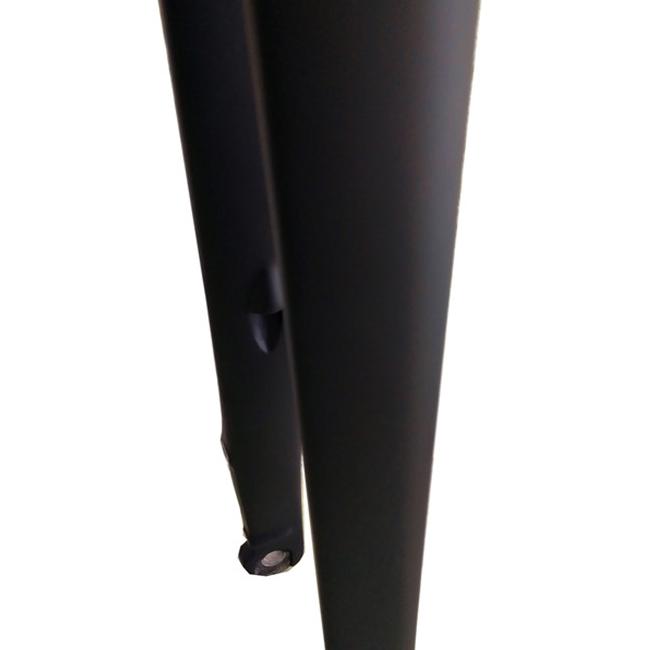

Fully Internal Cable Routing Carbon Disc Road Frame

Fully Internal Cable Routing Carbon Disc Road Frame

Fully Internal Cable Routing Carbon Disc Road Frame is constructed from Toray T700&T800.It uses BB86 bottom bracket and has internal cable routing.

  • Item NO.:

    FM-R890HE
  • Order(MOQ):

    10
  • Payment:

    Paypal, Bank Transfer, West Union
  • Product Origin:

    Xiamen,China
  • Color:

    UD Matte/Glossy/painting
  • Product Detail

Fully Internal Cable Routing Carbon Disc Road Frame


Product Feature

  • Super lightweight, frame constructed with premium Toray T800 carbon fiber, best strength to weight ratio with no expense spared.
  • The disc road frame in press fit BB86 bottom bracket system, of great stiffness.
  • Full internal cable routing for the whole frameset.
  • Including 470mm,500mm,520mm,540mm,570mm sizes.


Specification

Item NO.
FM-R890HE
Type:
700C carbon road bike frame
Material:
100% Carbon Fiber Toray T700 & T800
Weave:
UD Matte/Glossy/painting
BB:
BB86
Brake:
Flat mount thru axle
Size:
470mm/500mm/520mm/540mm/570mm
Tyre clearance:
28 mm
Weight:
from 1040g+/-40g (470mm)
Cable routing:
Internal (full hidden)

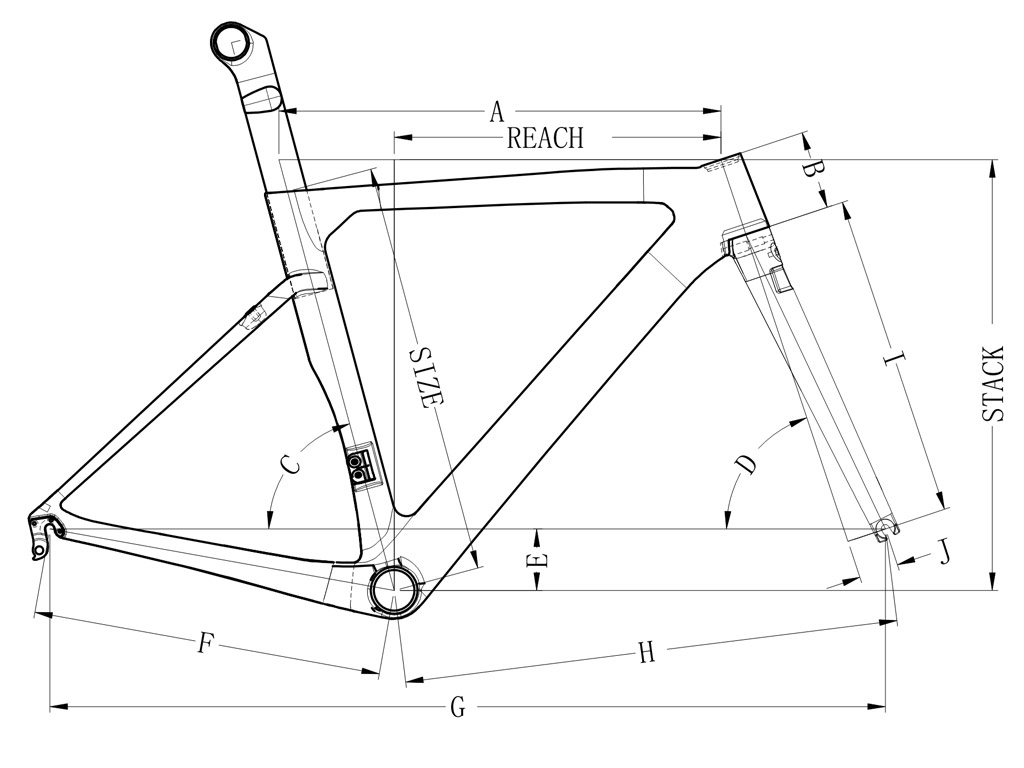

Product Geometry

Fully Internal Cable Routing Carbon Disc Road Frame

SIZE A B C D E F G H I J TRAIL STACK REACH
470 502 90 75.0 71.6 70 398 951 563 368 45 65.1 490 372
500 523 120 74.5 72.0 70 399 965 577 368 45 63.5 520 379
520 545 146 74 72.3 70 400 981 591 368 45 61.6 546 388
540 565 165 73.5 72.6 70 401 994 603 368 45 59.7 565 397
570 585 190 73.0 73.0 68 402 1007 615 368 45 57.2 588 405
