Aero Carbon Track Bike Frame For BSA System

Aero Carbon Track Bike Frame For BSA System

Aero carbon track bike frame is constructed from Toray T700&T800 carbon fiber.It has BSA system and includes frame, fork, stem, handlebar, seatpost and seatpost clamp.

  • Item NO.:

    FM-R021
  • Order(MOQ):

    10
  • Payment:

    Paypal, Bank Transfer, West Union
  • Product Origin:

    Xiamen,China
  • Color:

    UD Matte/Glossy/painting
  • Product Detail

Aero Carbon Track Bike Frame For BSA System


Product Feature

  • Super lightweight, frame constructed with premium Toray T800 carbon fiber, best strength to weight ratio with no expense spared.
  • The carbon track frame is available in press fit BSA bottom bracket system, of great stiffness.
  • Integrated front part design (frame, fork,stem, handlebar and clamp) to optimize strength and aerodynamics.


Specification

Item NO.:
FM-R021
Type:
700C carbon track bike frame
Material:
100% Carbon Fiber Toray T700 & T800
Weave:
UD Matte/Glossy/painting
Available size:
XXS.XS.S.M
Headset:
1-1/8''(top)/1-1/2''(down)
Bottom Bracket:
BSA
Handlebar:
370mm
Stem:
60/80/90/100mm
Frame weight:
1770+/-30g
Fork Weight:
430+/-15g
Including:
Frame, fork, stem, handlebar, seatpost and seatpost clamp


Product Geometry


Aero Carbon Track Bike Frame For BSA System

H/T:FSA IS-2(UP 1-1/8"+DOWN 1-1/8")

B B:BC 1.37*24T*68L

SIZE WHEEL SIZE Q7 N Q1 F L H A RC FC STACK REACH WB
XXS
700*23C 74.5° 520 73.5 43 70 50 478 380 561 460 392 936
XS 700*23C 74.5°
535 74.0° 43
80 50 489 380 572 472 404 947
S 700*23C
74.5°
550 74.0°
43
95 50 505 380 587 486 415 962
M 700*23C
74.5°
570 74.5° 43
121 50 531.4 380 603 512 428 978

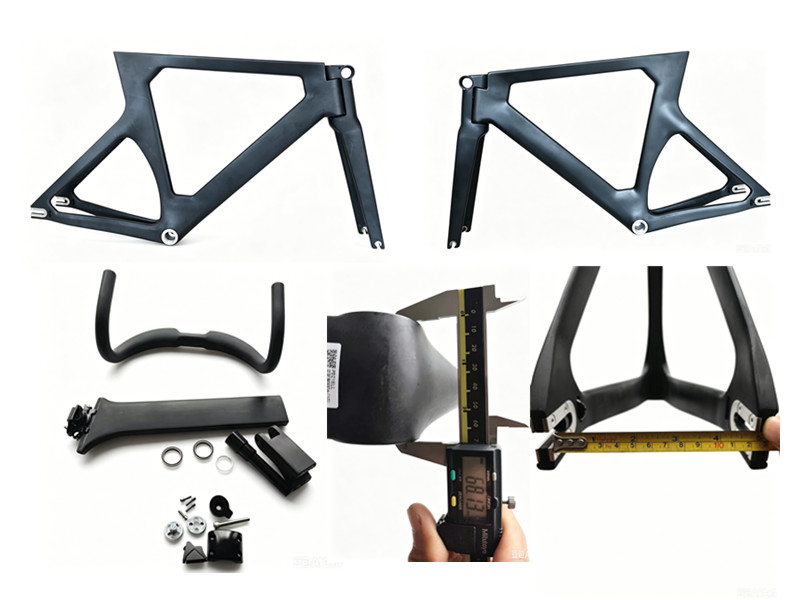

Completed Carbo Track Frame Display





Read More For Production Of Carbon Frames By Top-Fire Factory


Read More For Testing Of Carbon Frames By Top-Fire Factory
