Carbon Gravel Ebike Frame With FSA Hub Motor And Battery

Carbon Gravel Ebike Frame With FSA Hub Motor And Battery

Carbon Gravel Ebike Frame With FSA Hub Motor And Battery is constructed from Toray T700&T800. Gravel Carbon Ebike Frame uses Rear hub motor (FSA) Motor and FSA System Battery.

  • Item NO.:

    FM-RD23
  • Order(MOQ):

    10
  • Payment:

    Paypal, Bank Transfer, West Union
  • Product Origin:

    Xiamen,China
  • Color:

    UD
  • Product Detail

Carbon Gravel Ebike Frame With FSA Hub Motor And Battery




Product Feature

  • Super lightweight, frame constructed with premium Toray T700 & T800 carbon fiber, best strength to weight ratio with no expense spared.
  • Use Rear hub motor (FSA) Motor and FSA System Battery.
  • This Carbon Ebike Gravel Frame with full internal cable routing includes frame and fork.


Specification

Item No.:
FM-RD23
Material:
 full carbon
Weave:
UD
Include:
Frame and Fork
Headset size:
top 1-1/2 down 1-1/2
BB:
BSA/BB30 /BB T47
Size:
47/50/53/57
Fork clearance:
100mm
Rear clearance:
135mm
Seatpost Inner diameter:
31.6mm
Seatpost outer diameter
34.9mm
Brake Type:
Flat mount Disc Brake
Cables:
full internal (hidden)
Motor:
Rear hub motor (FSA)
Battery:
FSA System
Warranty:
2 years

Product Geometry

carbon road ebike frame

carbon gravle ebike frame

FAS motor

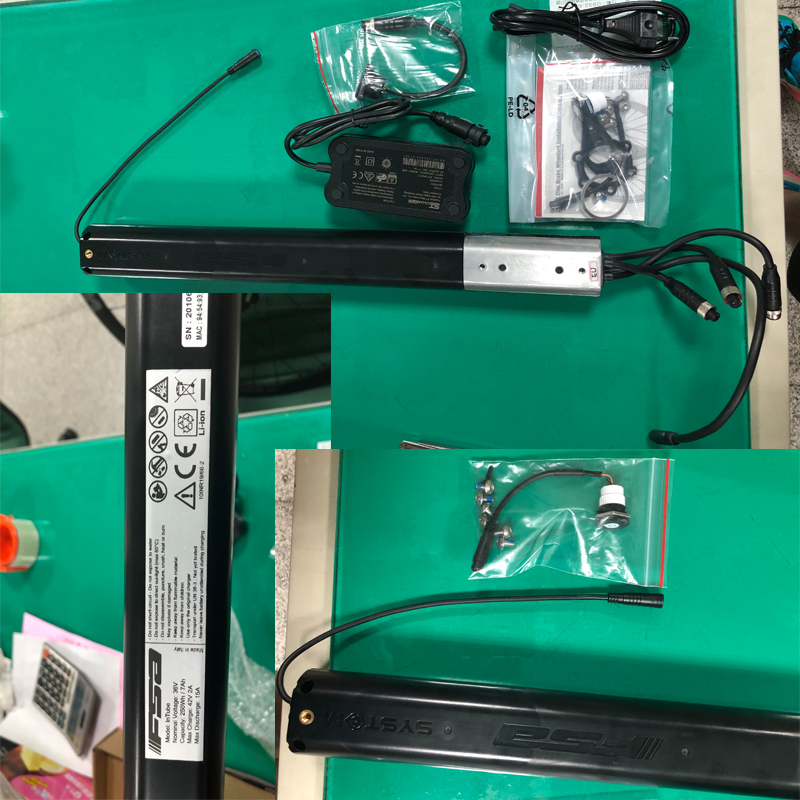

About FSA System


FSA system


The completed bicycle with FM-RD23:

carbon gravel e bike frame
