Carbon Ebike Road Frame For Fazua System

Carbon Ebike Road Frame RD17 is constructed from Toray T700&T800.It uses Fazua system and includes frame, fork, seatpost and clamp.

  • Item NO.:

    FM-RD17
  • Order(MOQ):

    10
  • Payment:

    Paypal, Bank Transfer, West Union
  • Product Origin:

    Xiamen,China
  • Color:

    UD Matte/Glossy/painting
  • Product Detail

Carbon Ebike Road Frame For Fazua System


Product Feature

  • Super lightweight, frame constructed with premium Toray T700 & T800 carbon fiber, best strength to weight ratio with no expense spared.
  • Full internal cable routing for the whole frameset.
  • This carbon ebike road frame has been specially designed around the Fazua MOTOR SYSTEM.
  • including frame(1400+-40g),fork( 420+-15g),seatpost,clamp and S.M.L sizes


Specification

Item NO.
FM-RD17
Type:
carbon ebike road frame
Material:
High Modulus Toray T700 & T800
Weave:
UD Matte/Glossy/painting
Available size:
S.M.L
Motor system:
Fazua
Headtube:
Tapered 1 1/2"(down) and 1 1/8"(up)
Tire size:
700X32C
Weight:
Frame 1400+-40g. Fork 420+-15g
Drop out:
thru axle 12mm
Cable rounting:
internal
including:
frame, fork, seatpost and clamp

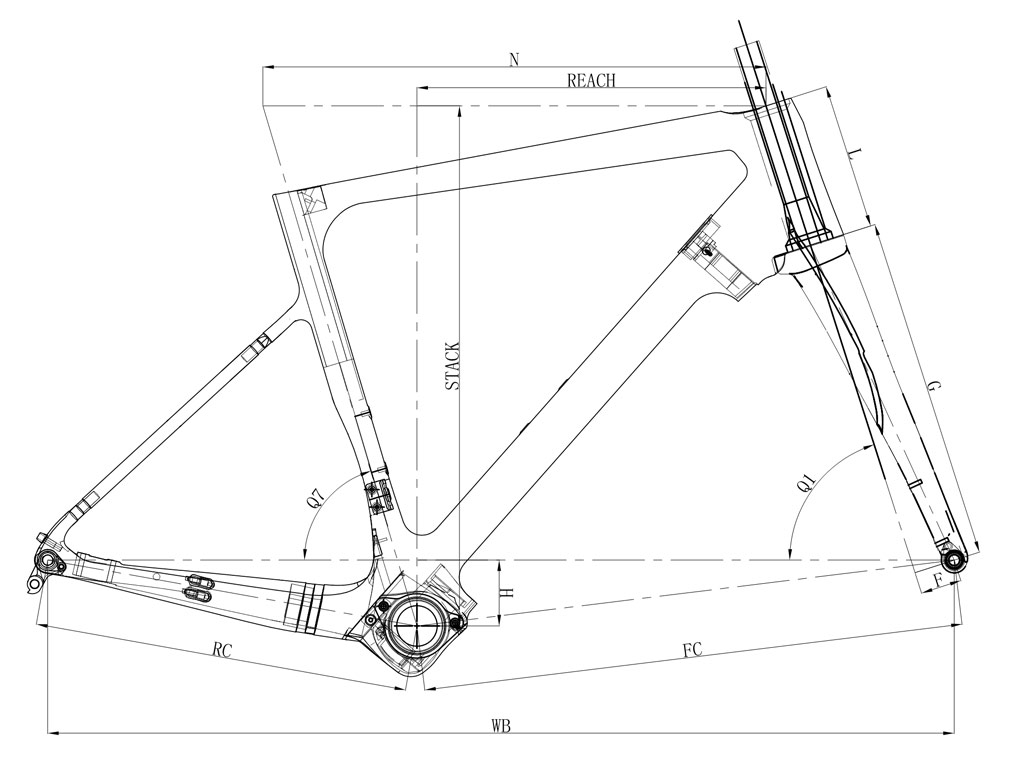

Product Geometry



Carbon Ebike Road Frame For Fazua System


SIZE WHEEL SIZE Q7 N Q1 F L H G RC FC STACK REACH WB
S 700C*32 74 530 71.5° 45 140 72 376 584 584 547 373 983
M 700C*32
73.5° 545 72.3° 45 160 72 376 592 592 569 381 991
L 700C*32
73° 565 73°
45 180 72 376 594.5 594.5 590.5 384.5 994



Product Overview



Read More For Production Of Carbon Frames By Top-Fire Factory


Read More For Testing Of Carbon Frames By Top-Fire Factory
