Top-Fire Ultra Light 700c Carbon Road Cycling Wheels

Top-Fire Ultra Light 700c Carbon Road Cycling Wheels

Carbon fiber road wheels are high-performance wheels designed specifically for road cycling. Their rims are made from high-quality Toray T700 and T800 carbon fibers. These wheels typically consist of two components: a front wheel weighing 646g and a rear wheel weighing 783.4g. Compared to traditional aluminum alloy wheels, carbon fiber wheels offer lighter weight, greater rigidity, and improved aerodynamics, significantly improving acceleration, climbing efficiency, and cruising speed.

  • Item NO.:

    R5156-1
  • Payment:

    Paypal, Bank Transfer, West Union
  • Product Origin:

    Xiamen,China
  • Color:

    UD/3K(Customized Painting Acceptable)
  • Shipping Port:

    XIAMEN
  • Product Detail

Top-Fire Ultra Light 700c Carbon Road Cycling Wheels


Carbon Road Bike Wheels Feature

Carbon Road Bike Wheels
  • To achieve exceptional strength without adding unnecessary weight, we utilize an optimized blend of Toray T700 and T800 carbon fibers. This material combination enables us to reduce weight while maintaining structural integrity.
  • At Top-Fire, the angle of each spoke hole is precisely adjusted to match the specific hub geometry, ensuring optimal spoke alignment and long-term durability. Each hole is rigorously inspected to ensure a smooth surface, free of burrs or defects. For riders or modifiers with specialized requirements, we also offer fully custom drilling solutions to accommodate unique wheel configurations.
  • The use of high-TG resin and a heat-resistant coating ensures reliable braking performance and structural stability, even during long downhill braking attempts.
  • In multiple independent laboratory and field tests, Top-Fire carbon wheels consistently match or exceed the performance of many competitors across a wide range of real-world riding conditions.

*All of our carbon road rims fit this lightweight hub.

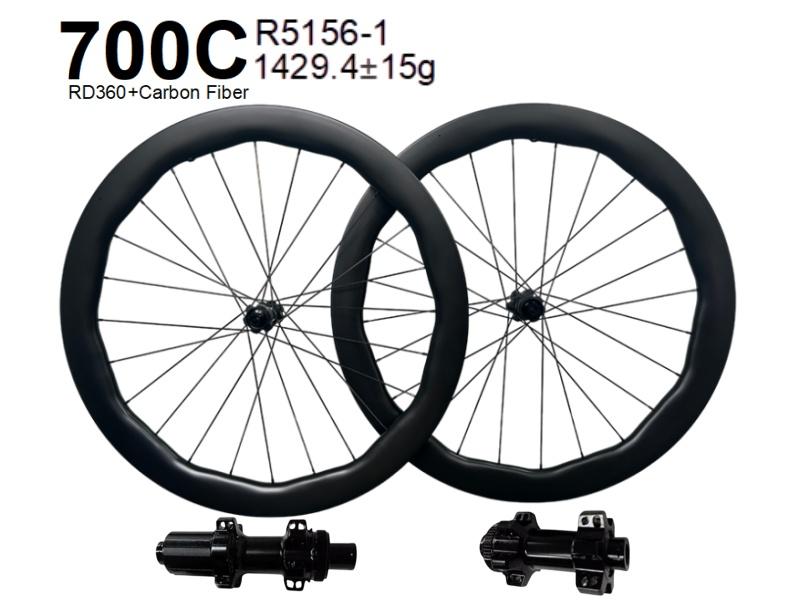

Carbon Road Bicycle Wheels Specification

Model R5156-1
Weight Front Wheel Weight: 646g
Rear Wheel Weight: 783.4g
Rim Size Drills: 24/24 Holes
Outer Width: 28mm
Inner Width: 21mm
Tire Compatibility  Clincher/ Tubeless
Recommended Tire Size 25-28C
Chossen Hub RD360
Perrin:Ceramics
Freehub Body:Planetary gear(Shimano)
Spacing:Front: 12*100 mm  Rear:12*142mm
Spoke Count Front: 24  Rear: 24
Spoke Pattern Front: 2X  1:1   Rear: 2X  1:1
Max Spoke Tension >450kgf
Rim Material Toray T700 + T800 Carbon Fibers
Spoke Material Carbon Fiber
Disc brake/rim brake Disc brake
Warranty 18 months
Packing Size 850*650*200mm(Carton)


Why Choose Carbon Fiber Road Bike Wheels for Your Brand?
Lightweight and Faster Performance
Carbon fiber wheels are much lighter than traditional alloy wheels, making them easier to accelerate and climb hills. For cyclists, this translates to faster speeds and better overall performance. When you offer carbon fiber wheels, you're helping your customers go faster with less effort.
Durability and Strength
Even though carbon fiber is lightweight, it’s incredibly durable and can handle the stress and impacts that come with riding on rough terrain. This makes carbon fiber wheels a long-lasting investment, providing value for your customers over time.
Better Aerodynamics
Carbon fiber wheels are designed to be more aerodynamic than their alloy counterparts, reducing wind resistance. This benefit is especially important for cyclists looking to improve their performance in races or long-distance rides. By offering carbon fiber wheels, your brand can appeal to athletes focused on speed and efficiency.
Comfort and Smooth Ride
Another key advantage of carbon fiber wheels is their ability to absorb road vibrations, offering a smoother ride. This makes them ideal for long rides where comfort is just as important as speed.


Why Choose Top Fire Carbon Road Bike Wheels?
When selecting carbon road bike wheels, Top Fire stands out for its exceptional quality and performance. Whether you're a retailer, OEM client, or custom bike brand, choosing Top Fire's carbon road wheels will add a unique competitive edge to your product lineup. Here are several key reasons to choose Top Fire.


Lightweight Design for Enhanced Performance
Top Fire carbon road bike wheels are designed with a lightweight structure, significantly reducing the weight of the wheels. A lighter wheelset results in better acceleration and climbing performance, making it easier for cyclists to increase their speed. Offering these high-performance wheels to your customers helps them enhance their riding experience and overall performance.
Outstanding Durability and Strength
Despite being lightweight, Top Fire's carbon road bike wheels are built with excellent durability and strength. They can withstand the rigors of long rides and rough terrains, making them a reliable choice for both recreational cyclists and professional riders. With Top Fire's wheels, your customers can enjoy stable performance while reducing the frequency of repairs or replacements, providing them with a higher return on investment.
Superior Aerodynamics
Top Fire's carbon road wheels feature aerodynamic designs that reduce drag and increase riding efficiency. This is particularly beneficial for competitive cyclists, as it allows them to ride faster with less effort. By offering Top Fire's carbon road wheels, you can help your customers gain a competitive edge, especially in races or time trials.
High-Quality Manufacturing and Reliability
Each Top Fire carbon road bike wheel is crafted with stringent quality control processes and the latest manufacturing technologies. Whether it's the materials used, the production process, or product testing, Top Fire ensures high standards across the board. This guarantees that your customers receive top-quality products that perform consistently.


Customization and Bulk Order Support
Top Fire offers flexible customization options, allowing you to tailor the carbon road bike wheels to fit your brand's unique design and needs. Whether you're ordering in bulk or requesting small batches of custom-designed wheels, Top Fire ensures quick production and timely delivery, helping your brand stand out in the market.


The Advantages of Chinese Carbon Road Bike Wheels
When it comes to sourcing carbon road bike wheels, Chinese manufacturers offer significant advantages in terms of both quality and cost. With a rapidly growing cycling market, China has become a leading hub for high-quality, yet affordable, carbon fiber products. Here's why Chinese carbon fiber road bike wheels are a smart choice for bike shops, OEMs, and custom bike brands.
High-Quality Materials at Competitive Prices
Chinese manufacturers have access to advanced materials and production technologies, allowing them to produce carbon fiber road bike wheels that are on par with top international brands. Due to lower labor and production costs, these wheels are available at a fraction of the price of their Western counterparts, without compromising on quality or performance. This makes them a highly cost-effective solution for businesses looking to offer premium products at a competitive price.
Reliable Manufacturing and Fast Turnaround
China’s manufacturing sector is known for its efficiency. By choosing Chinese carbon road bike wheels, businesses can enjoy fast production and shorter lead times. Whether you are placing bulk orders or need custom designs, reliable Chinese manufacturers can meet tight deadlines, ensuring that your products are available when you need them.
Variety of Options and Customization
One of the key advantages of Chinese manufacturers is their ability to offer a wide variety of carbon road bike wheels with customization options. Whether you're looking for different rim depths, braking systems (like disc or rim brakes), or specific colors and designs, Chinese manufacturers can work with you to create products that fit your brand’s unique needs. This flexibility gives your business the freedom to offer a broad range of products to your customers.

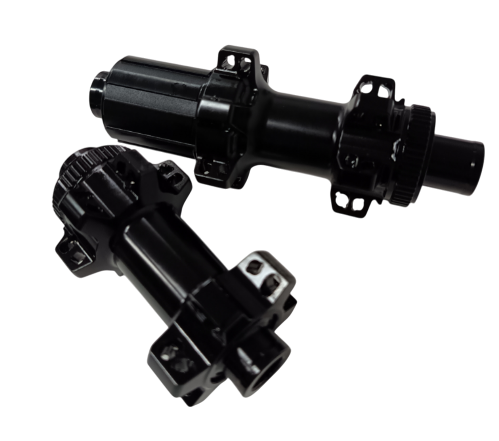

About Hub

RD-360
Number:RD360
Hole Ratio
Number of holes:24(F), 24(R)
Proportion:1:1(F),1:1(R)
Spokes
Steel spokes
T head
Weight
Front wheel(g):115
Rear wheel(g):245.2
Structure: Planetary gear system

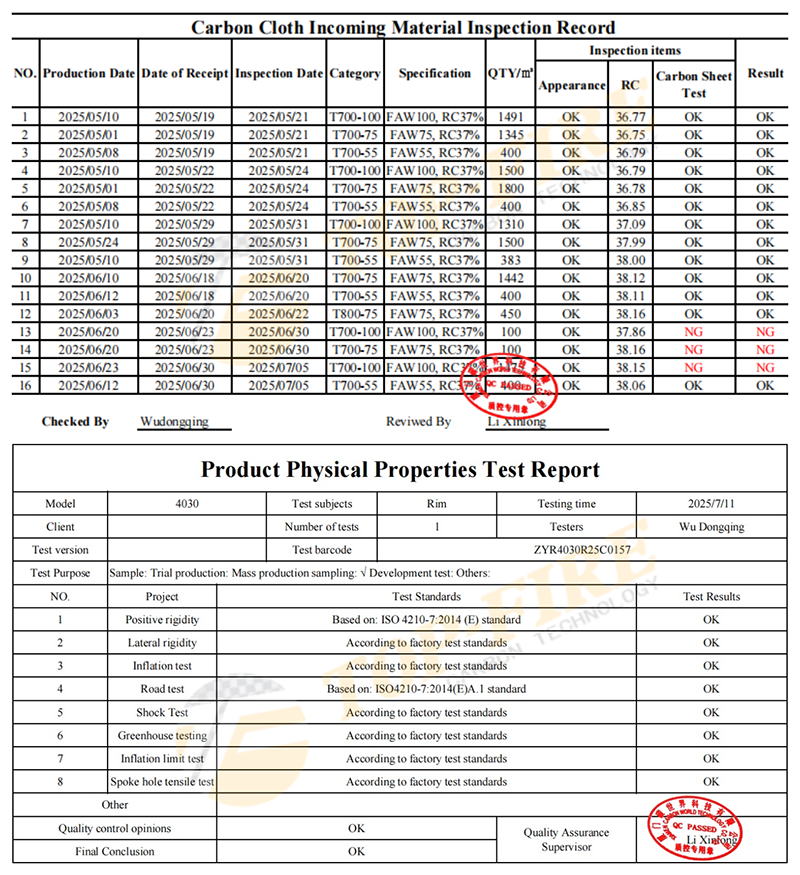

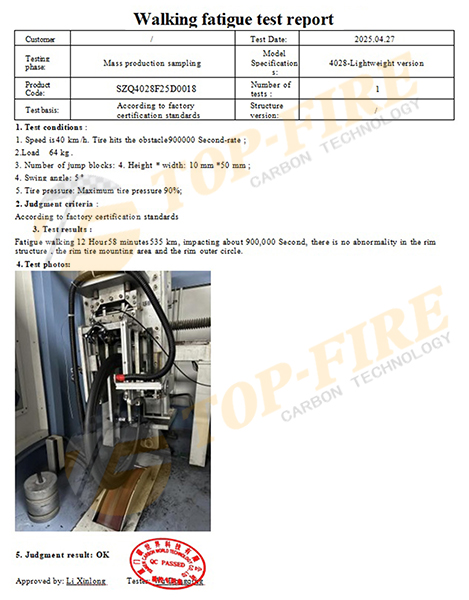

Carbon Fiber Road Bike Wheels Test Report

Carbon Fiber Road Bike Wheels Test Report

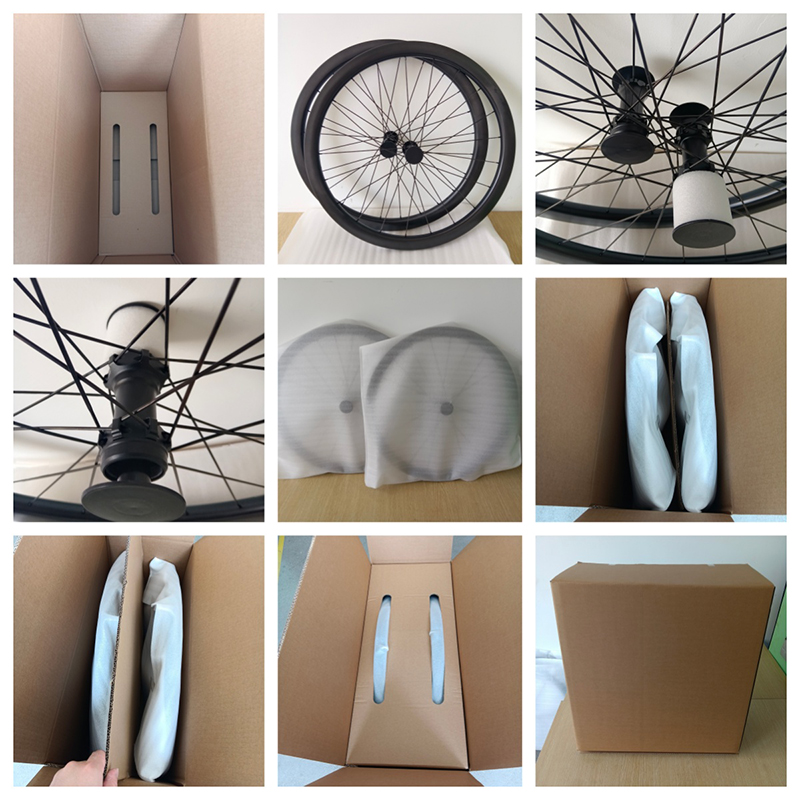

Carbon Road Wheels 700c Packaging

Carbon Road Wheels 700c Packaging


Frequently Asked Questions About Carbon Road Bicycle Wheels

Q: What makes carbon road cycling wheels so lightweight?
A: Carbon fiber is extremely strong and light, allowing for wheels that are both durable and lighter than alloy wheels. This reduces rotational mass, making acceleration and climbing easier.
Q: Are carbon fiber road bike wheels suitable for all types of cycling?
A: Carbon fiber wheels are ideal for performance cycling, including road racing and long-distance rides. They may not be the best for heavy-duty mountain biking or casual riding due to cost and the need for careful maintenance.
Q: How do carbon road wheels compare to alloy wheels in terms of durability?
A: Carbon wheels are more durable in terms of strength and impact resistance, but are more sensitive to cracks from extreme impacts. Alloy wheels are more resistant to scratches and dents but tend to be heavier.
Q: How do I maintain my carbon road bike wheels to ensure longevity?
A: Keep wheels clean and dry, inspect for cracks or wear, and avoid harsh chemicals. Regularly check the rims and store them in a cool, dry place.
