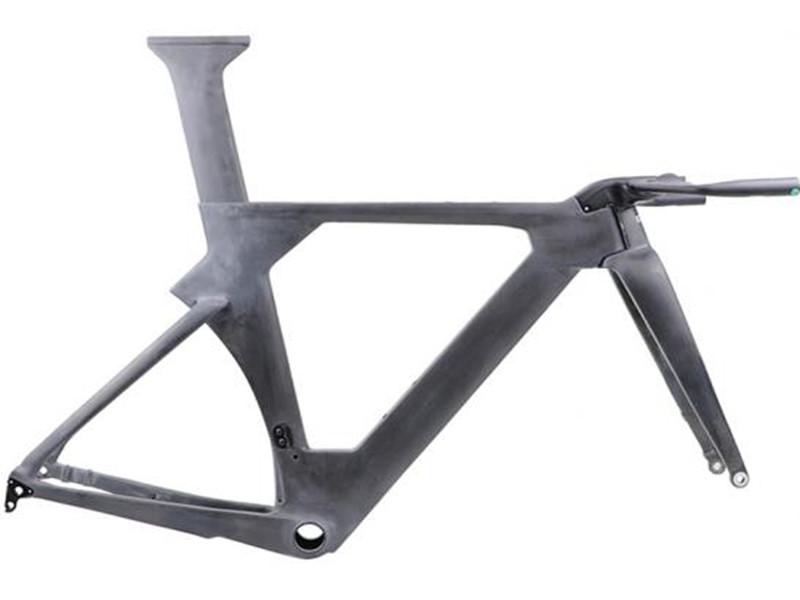

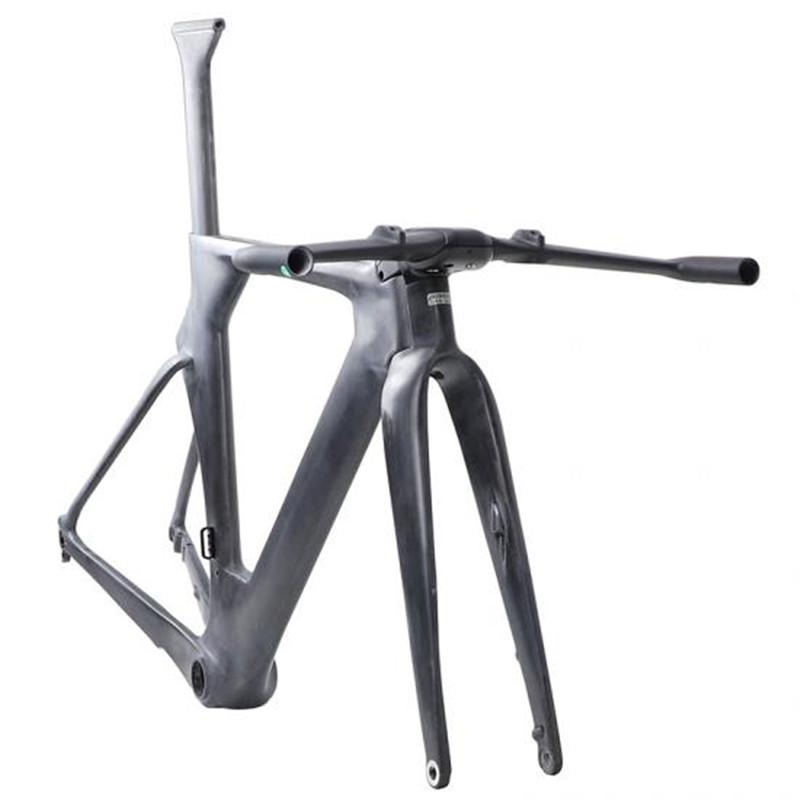

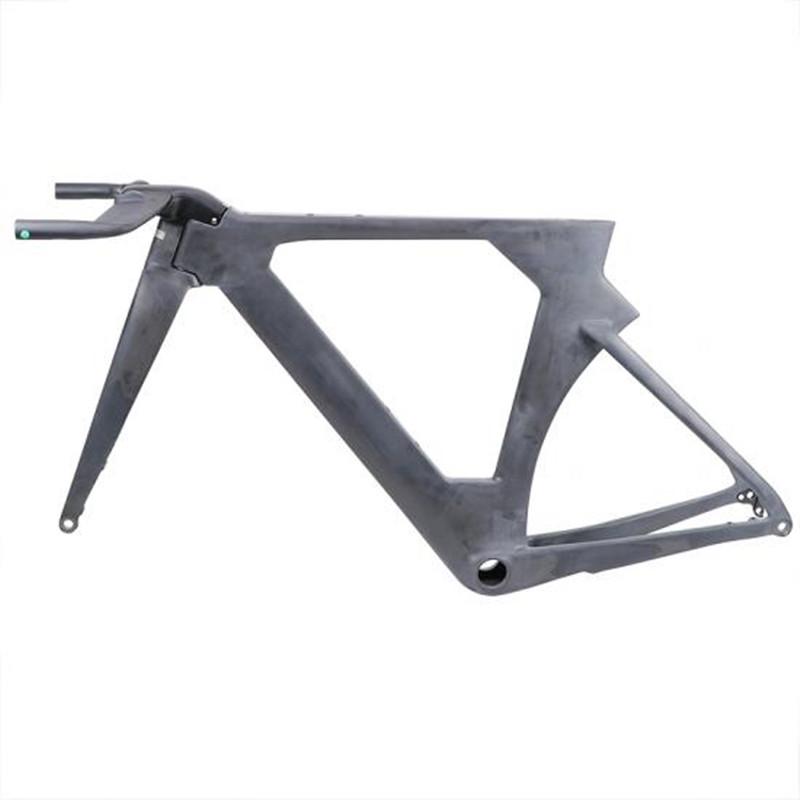

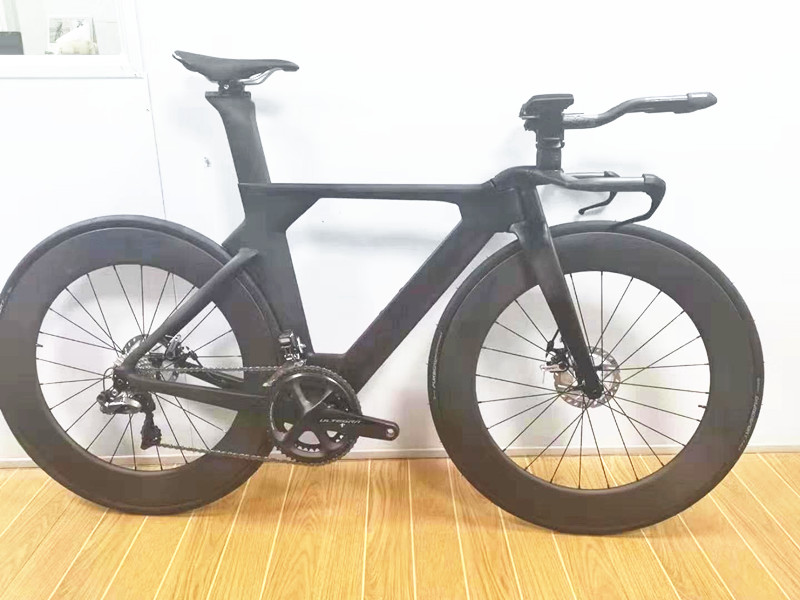

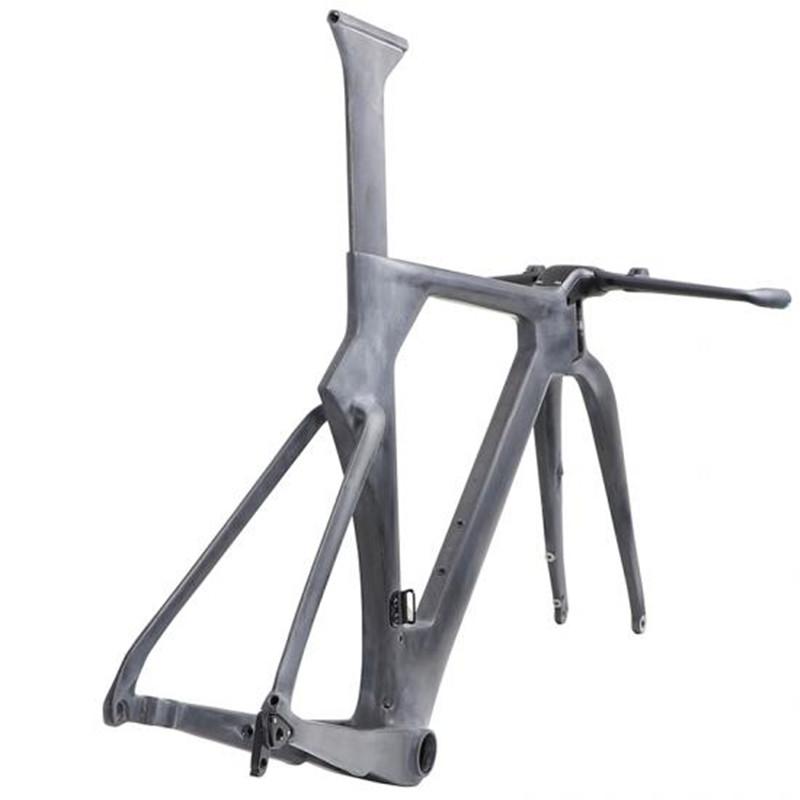

Pro Aero Carbon Triathlon bike Integrated Frame TT bike frame

Pro Aero Carbon Triathlon bike Integrated Frame TT bike frame


Full internal cable routing

Aerodynamic frame design

Compatible with mechanical or DI2 groups

Aero handlebar integrated


  • Item NO.:

    FM-R929
  • Payment:

    T/T ,paypal
  • Product Detail

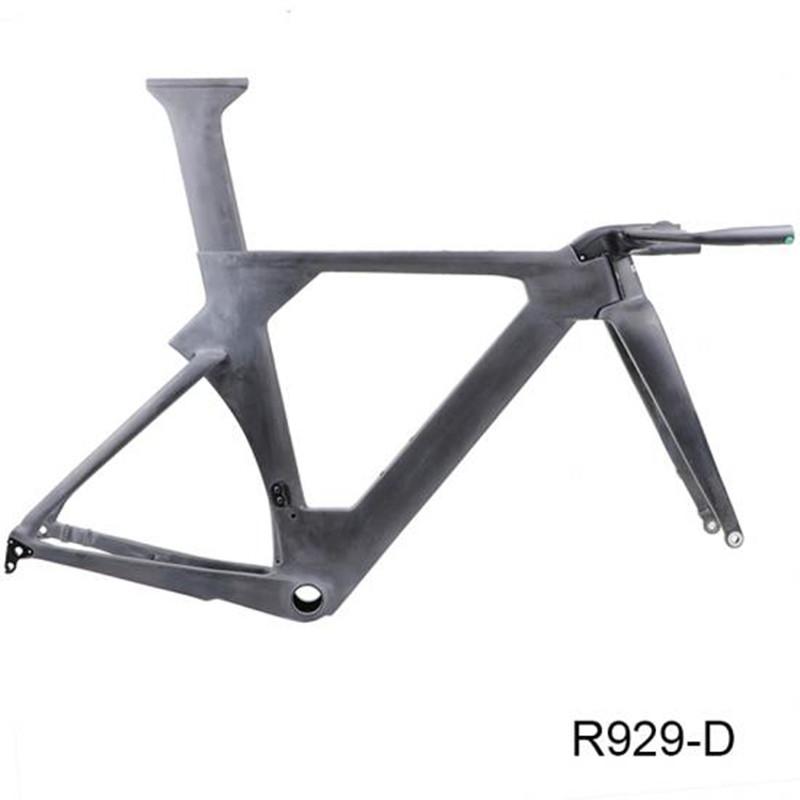

Model name R929-D

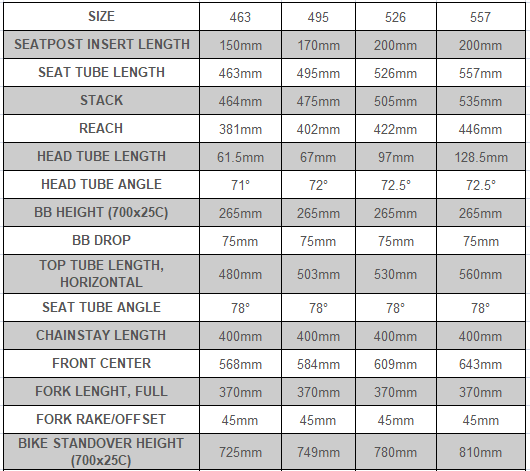

Size 463 / 495 / 526 / 557mm
Headtube Tapered 1" / 1"
Bottom bracket BB86
Fork specify carbon fork
Seat post  specify carbon seat post
Brake mount type Flat mount Disc brake 140mm/160mm
Groupset Machanical and Di2 compatible
Dropout Front 12x100mm thru axle, Rear 12x142mm thru axle
Max tire  700x25C
Material  High modulus Toray T800 carbon fiber
Weight 1230g+/-40g (Size: 495mm)
Feature Full internal cable routing
Test Standard
ISO4210
Warranty
2 years
