Carbon Full Suspension Ebike Frame For Shimano Motor

Carbon Full Suspension Ebike Frame For Shimano Motor

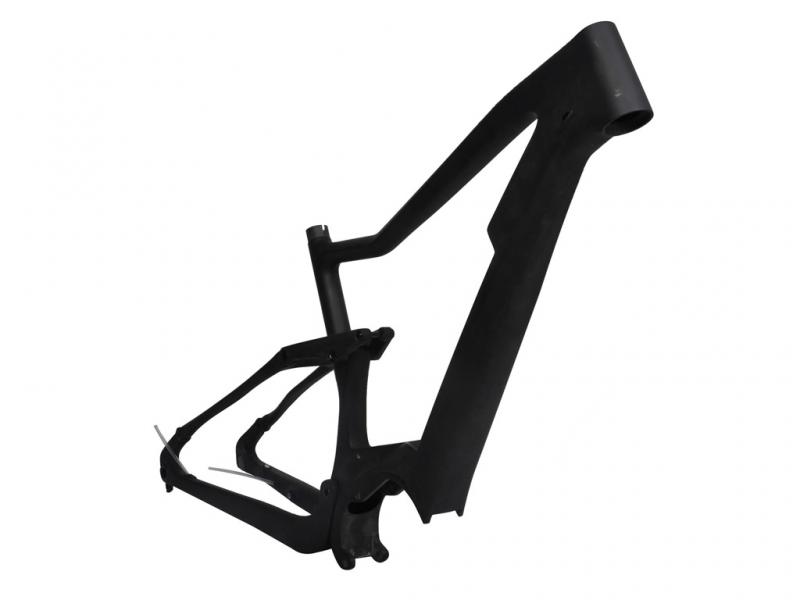

The full suspension carbon ebike frame is constructed fromHigh Modulus Toray T700 & T800.Its motor system is SHIMANO M800.

  • Item NO.:

    FM-MD12
  • Order(MOQ):

    10
  • Payment:

    Paypal, Bank Transfer, West Union
  • Product Origin:

    Xiamen,China
  • Color:

    UD Matte/Glossy/painting
  • Product Detail

Carbon Full Suspension Ebike Frame For Shimano Motor



Product Feature

  • Super lightweight, frame constructed with premium Toray T700 & T800 carbon fiber, best strength to weight ratio with no expense spared.
  • FM-MD12 has been specially designed around the SHIMANO E8000 MOTOR SYSTEM.
  • Full suspension ebike frame with 165*38mm rock shock can take you to experience different feelings.
  • The frame geometry has been carefully designed to provide the best balance between riding both UP and DOWN the roughest of trails.
  • If you already own a SHIMANO E8000 in a commuter, and you want the different experience of mountain action, add the FM-MD12 Carbon Frameset to your cart now.

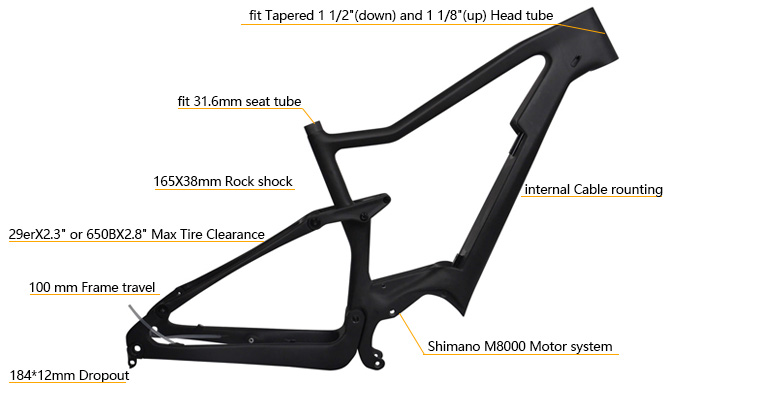

Specification

Item NO.
FM-MD12
Type
Carbon electric bike frame
Material
High Modulus Toray T700 & T800
Weave
UD Matte/Glossy/painting
Available size
16,18,20
Motor system
SHIMANO M8000
Headtube
Tapered 1 1/2"(down) and 1 1/8"(up)
Seatpost
31.6mm
Max Tire Clearance
29erX2.3" or 650BX2.8"
Dropout
148x12
Rock shock
165X38mm
 Frame travel
100m
Cable rounting
internal

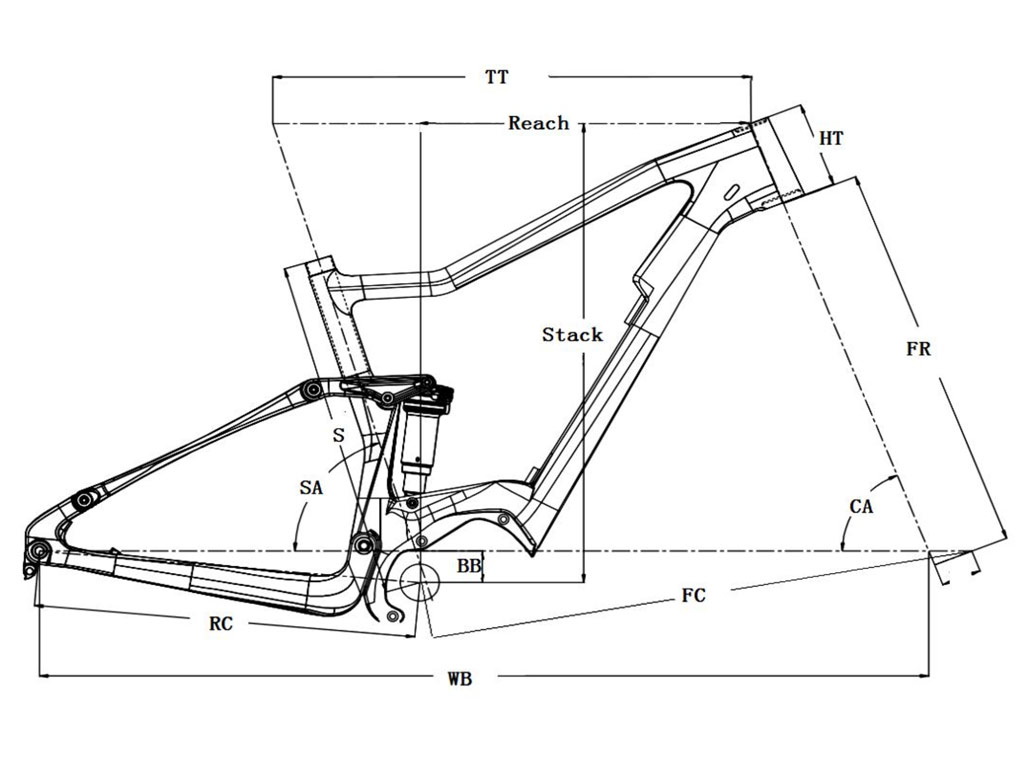

Product Geometry

Carbon Full Suspension Ebike Frame For Shimano Motor


SIZE SA TT HT CA FR OF WB FC RC BB Stack Reach S
16" 72.5 595 105 68.5 527 51 1175.5 691 488 42.5 612 410.5 420
18" 72.5 610 115 68.5 527 51 1191.5 707 488 42.5 622.5 422 457
20" 72.5 625 125 68.5 527 51 1207 712 488 42.5 631.5 434 500


Read More For Production Of Carbon Frames By Top-Fire Factory


Read More For Testing Of Carbon Frames By Top-Fire Factory
