29er Full Suspension Carbon All Mountain Frame

29er Full Suspension Carbon All Mountain Frame

29er Full Suspension Carbon All Mountain Frame is constructed from Toray T700&T800.Thisis applicable to all mountain and has fully internal cable routing.

  • Item NO.:

    FM-M931
  • Payment:

    Paypal, Bank Transfer, West Union
  • Product Origin:

    Xiamen,China
  • Color:

    UD Matte/Glossy/painting
  • Product Detail

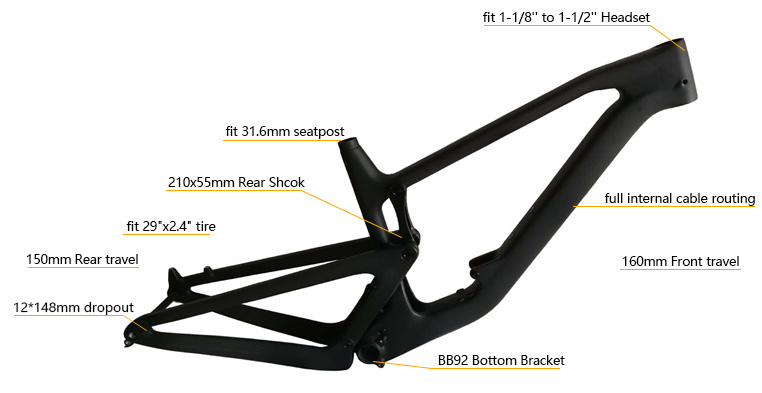

29er Full Suspension Carbon All Mountain Frame


Product Feature

  • Super lightweight, frame constructed with premium Toray T800 carbon fiber, best strength to weight ratio with no expense spared.
  • The all mountain frames is available in press fit BB92 bottom bracket system, of great stiffness.
  • Internal cable routing .


Specification

Item NO.
FM-M931
Type:
29er full suspension AM frame carbon fiber MTB frame
Material:
100% Carbon Fiber Toray T700 & T800
Weave:
UD Matte/Glossy/painting
Available size:
S.M.L.XL
Headset:
1-1/8'' to 1-1/2''
Tire:
29"x2.4"
Bottom Bracket:
BB92
Seatpost:
31.6mm
Rear Shcok:
210x55mm
Dropout:
148x12
Travel:
F:160MM R 150MM
Cable routing:
full internal
For Trial: Am



Product Geometry



29er Full Suspension Carbon All Mountain Frame




Dimension S M L XL
A REACH 453 473 493 518
B STACK 610 619 637 660
C Head Tube Angle 65.5 65.5 65.5 65.5
D Seat Tube Length 405 455 482 532
E Front Centre 774 798 827 862
F BB Height 344 344 344 344
G BB Drop 29 29 29 29
H Wheelbase 1207 1231 1260 1301
I Chain stay Length 433 433 433 433
J Seat Tube Length 100 110 130 155
K Top Tube Length 594 618 645 679
L Seat Tube Angle 77.0 76.8 16.6 16.3
