29er Full Suspension Enduro Carbon MTB Frame

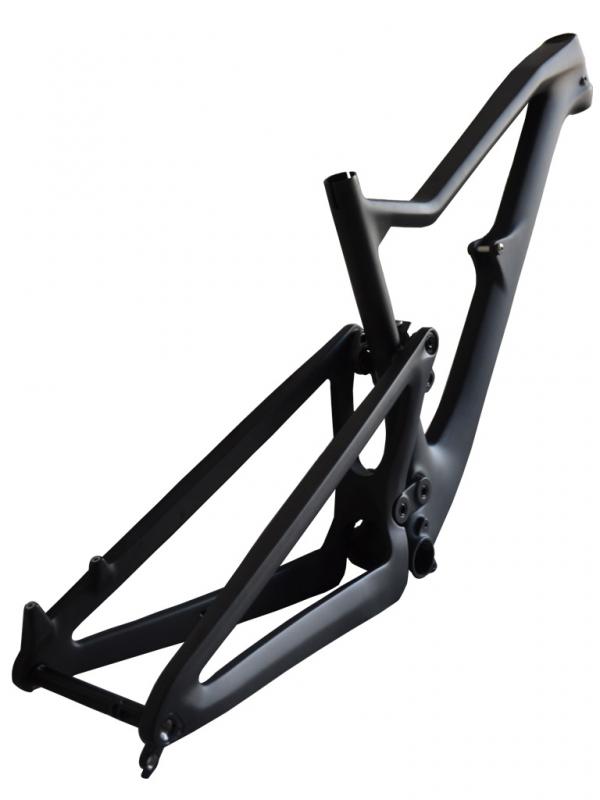

29er Full Suspension Enduro Carbon MTB Frame

29er Full Suspension Enduro Carbon MTB Frame is constructed from Toray T700&T800.This is a full suspension and enduro mtb frame that has internal cable routing.

  • Item NO.:

    FM-M930
  • Order(MOQ):

    10
  • Payment:

    Paypal, Bank Transfer, West Union
  • Product Origin:

    Xiamen,China
  • Color:

    UD Matte/Glossy/painting
  • Product Detail

29er Full Suspension Enduro Carbon MTB Frame




Product Feature

  • 29er Trail/Enduro Carbon Frame Full Suspension MTB Frame
  • Super lightweight, frame constructed with premium Toray T800 carbon fiber, best strength to weight ratio with no expense spared.
  • The full suspension carbon mtb frame is available in press fit BB92 bottom bracket system, of great stiffness.
  • Full internal cable routing.


Specification

Item NO.
FM-M930
Type:
29er Trail/Enduro Carbon Frame Full Suspension MTB Frame
Material:
100% Carbon Fiber Toray T700 & T800
Weave:
UD Matte/Glossy/painting
Available size:
15/17/18.5/20.5
Headset:
1-1/8''(top)/1-1/2''(down) (FSA NO.42ACB)
Tire:
29"x2.35"
Bottom Bracket:
BB92
Seatpost:
31.6mm
Rear Shcok:
210x55mm
Dropout:
148x12
Travel:
F:170MM R:160MM
Cable routing:
full internal


Product Geometry



29er Full Suspension Enduro Carbon MTB Frame




A B C D E F G H I J K L M
Dimension top tube length head tube length seat tube angle head tube angle BB drop chain stay wheel base BB to front wheel fork length fork rake seat tube total length REACH STACK
15 582.5 95 76.0° 65.0° 23 431 1184 754 577.6 44 395 429.3 614.6
17 610 105 76.0°
65.0°
23 431 1214 784 577.6 44 425 454.7 623.7
18.5 633 115 76.0°
65.0°
23 431 1238 808 577.6 44 455 475 632.8
20.5 655 125 76.0°
65.0°
23 431 1263 833 577.6 44 495 495.3 614.8
