Top-Fire 700C Carbon Wheelset For Road Bike

This carbon fiber road wheelset is designed for high-speed cruising and climbing efficiency, balancing lightweight and aerodynamic performance. Crafted from high-modulus carbon fiber, it provides rigidity while significantly reducing overall weight, resulting in quicker acceleration and easier climbing. The rounded rim cross-section optimizes wind resistance, ensuring stable handling in crosswinds.

Item NO.:
R5156-2
Payment:
Paypal, Bank Transfer, West Union
Product Origin:
Xiamen,China
Color:
UD/3K/12K(Customized Painting Acceptable)
Shipping Port:
XIAMEN

Product Detail

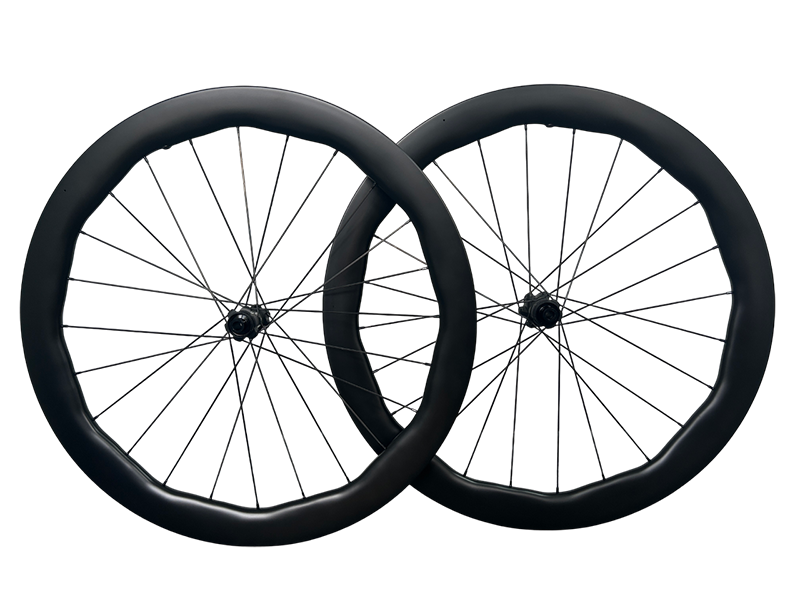

Top-Fire 700C Carbon Wheelset For Road Bike

Product Feature

This lightweight, extra-wide carbon rim boasts exceptional stiffness and stability, featuring a sleek, aerodynamic profile that significantly improves handling and cruising speed.
Constructed from Toray T700/T800 unidirectional carbon fiber, the rim utilizes a 3K weave process to reinforce the rim bed and spoke interface areas, achieving a balanced balance of strength and weight.
A unique high-TG resin system ensures thermal stability during braking, maintaining consistent braking performance and structural integrity even in high-temperature conditions on long, steep climbs.
Utilizing a 4D precision drilling process, the drill holes are aligned with the spoke tension direction, fundamentally enhancing the rim's overall strength and durability.
Compatible with Shimano 11/12-speed and SRAM XDR 12-speed freehubs, it meets a variety of drivetrain requirements.
All wheels are tested and can be customized to meet customer requirements. Contact us for the latest technical information.

*All of our carbon road rims fit this lightweight hub.

Specification

Model	R5156-2
Weight	Front Wheel Weight: 765.9g
	Rear Wheel Weight: 890.7g
Rim Size	Drills: 24/24 Holes
	Outer Width: 30.8mm
	Inner Width: 23.4mm
Tire Compatibility	Clincher/ Tubeless
Recommended Tire Size	25-28C

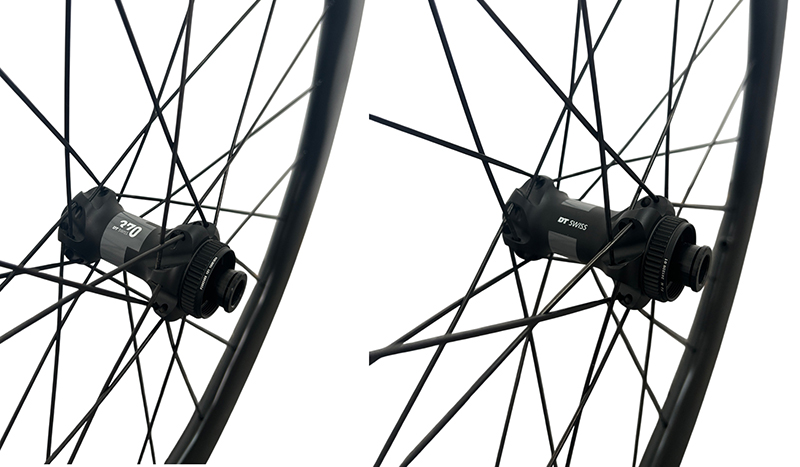

Chossen Hub	DT 370
	Perrin：Ceramics
	Freehub Body：Planetary gear（Shimano）
	Spacing：Front: 12100 mm Rear：12142mm
Spoke Count	Front: 24 Rear:24
Spoke Pattern	Front: 2X 1:1 Rear: 2X 1:1
Max Spoke Tension	>450kgf
Rim Material	Toray T700 + T800 Carbon Fibers
Spoke Material	SAPIM cx-leader
Disc brake/rim brake	Disc brake
Warranty	18 months
Packing Size	850650200mm（Carton）

About R5156-2

Test Report
